Products > Gasoline Engine > > 9HP Air-Cooled Small Gasoline Engine (FD177F / 270cc)
9HP Air-Cooled Small Gasoline Engine (FD177F / 270cc) 9HP Air-Cooled Small Gasoline Engine (FD177F / 270cc) 9HP Air-Cooled Small Gasoline Engine (FD177F / 270cc) 9HP Air-Cooled Small Gasoline Engine (FD177F / 270cc)
Product name : 9HP Air-Cooled Small Gasoline Engine (FD177F / 270cc)
Product No. : FD270
Model Number : FD270
Engine Type : Air-Cooled, 4-Stroke, Ohv, Single Cylinder, Gasoline Engine
Starting System : Manual Start
Trade Mark : Fusinda
Loading Port : Chongqing, China
Origin : Chongqing, China
H.S Code : 84079090
Package : Carton
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

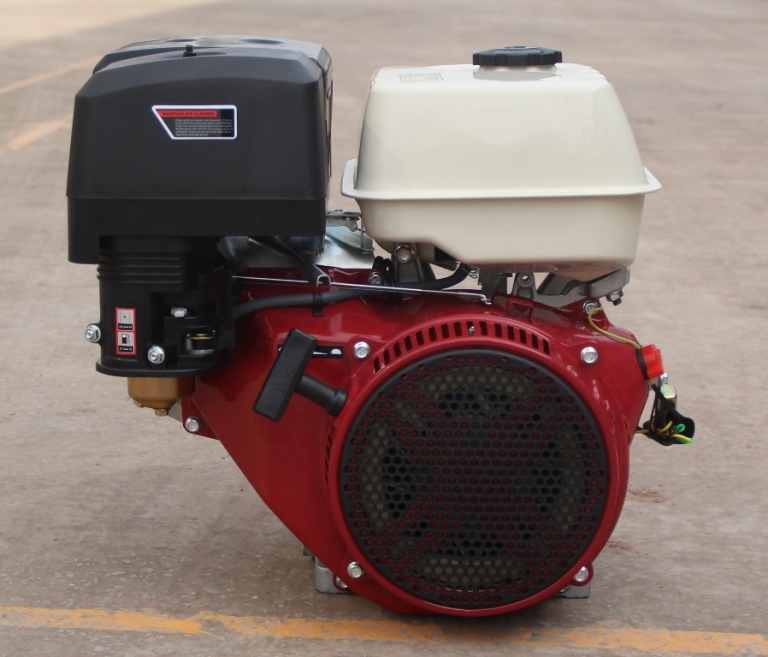

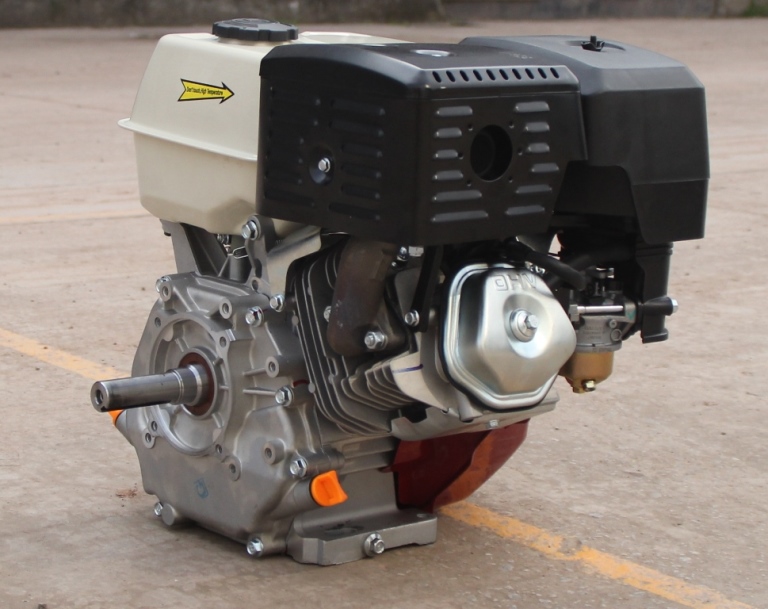

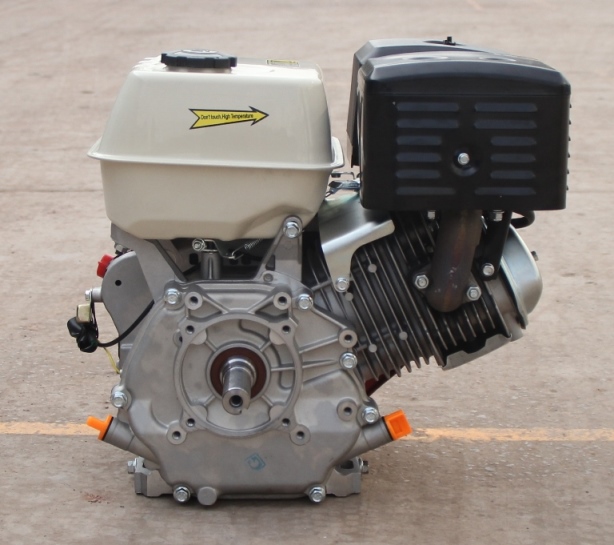

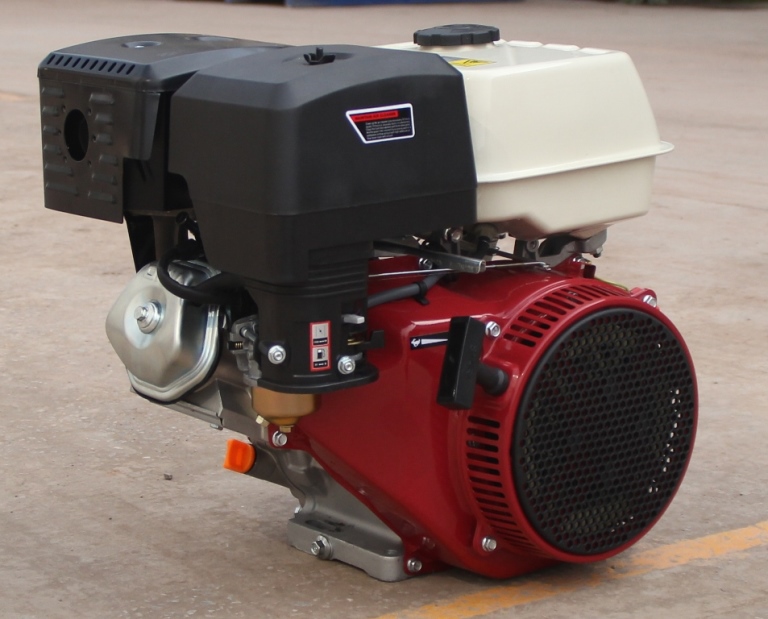

9HP Air-Cooled Small Gasoline Engine (FD177F / 270cc)

Product Description

FUSINDA 9HP / 270cc Air-Cooled Honda Style Small Gasoline Engine

Product Description
Fusinda brand, Air Cooled, FD270 / 270cc, single cylinder gasoline engine

Features:
* Advance OHV, air cooled, 4 stroke engine, delivers non-flunctuating power for longer time
* Light and compact design
* Low fuel consumption
* Easy and fast starting and installing
* Lower noise and small vibration
* The valve designed for carbon deposition prevention, which can effectively prolong the lifespan of engine

* Integrated type of wind scooper, effectively reduce the heating, better prolong the engine's lifespan

* Optimum inner structural design of cylinder head valve, effectively lower spray volume of oil, less fuel consumption

* OHV design, lower temperature with running engine, more power output, more endurable, can save more fuel

* Cast Iron Sleeve, effective improved the performance of lubrication, as well as make the engine to better stand wear and tear, to prolong the engine's lifespan

* Low oil shut down system, prevent engine to run in low oil condition, better protect engine



Model Number

FD210



FD270

FD390

FD420

FD460

Engine Type

Single Cylinder, 4-stroke, Air Forced Cooling

Displacement(cc)

208

242

270

389

420

459

Bore x Stroke(mm)

70x54

73x58

77x58

88x64

90x66

92x69

Max Power(Hp/rpm)

7/3600

8/3600

9/3600

13/3600

16/3600

19/3600

Max. Torque(N.m/rpm)

13.5/2500

14.5/2500

16.5/2500

23/2500

26/2500

29/2500

Idle Speed (r/min)

1500±100

Compression Ratio

8.2:1

8.2:1

8.2:1

8.0:1

8.0:1

9.0:1

Fuel Consumption(g/kw.h)

≤395

≤374

≤374

≤374

≤374

≤374

Noise (@7M)

66

68

69

73

73

74

PTO Shaft Rotation

Anti-Clockwise (From PTO Side)

Ignition System

Transistorized Magneto

Starting System

Recoil Start / Electric Start

Lubrication System

Splash

Governor System

Centrifugal Mass Type

Oil Capacity (L)

0.6

1.1

1.1

1.1

1.1

1.2

Fuel Tank Capacity (L)

3.6

6

6

6.5

6.5

6.5

N.W/G.W (kg)

15/17

25/28

25/28

31/34

31/34

32/35

Dimension (mm)

400*370*380

490*420*470

490*420*470

490*420*490

490*420*490

490*420*490

20GP (Set)

522

305

305

305

305

305

40HQ (Set)

1281

660

660

660

660

660
