Products > Gasoline Engine > > 7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine

Product name : 7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine

Product No. : FD210

Model Number : FD210

Engine Type : Air-Cooled, 4-Stroke, Ohv, Single Cylinder, Gasoline Engine

Starting System : Manual Start

Trade Mark : Fusinda

Loading Port : Chongqing, China

Origin : Chongqing, China

H.S Code : 84079090

Package : Carton

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

7HP / 212cc Air-Cooled Honda Engine, Small Gasoline Petrol Engine

Basic Info

Model NO.: FD210
Discharge Standard: Euro II
Cylinder: Single Cylinder
Cold Style: Air-cooled
Power: Electronic
The Valve Solved Carbon Deposition: Effectively Prolong The Lifespan of Engine
Easy Start, Easy Maintenance: Effectively Reduce The Heating and Noise
Cast Iron Sleeve: Improved The Performance of Lubrication
Intake Pressure Impulse: Naturally Aspirated
Cooling Cylinder: Air-Cooled
Trademark: Fusinda
Specification: CE, RoHs, SASO, SONCAP, EPA, CARB
HS Code: 84079090

Certification: ISO9001, CE, RoHS, EPA
Body Material: Aluminium
Fuel: Gasoline Engine
Stroke: 4 Stroke
Start: Electric Start
Integrated Type of Wind Scooper: Compact New Structure, Light Weight
Completely New Design of Crankcase: Lower Spray Volume of Oil, Less Fuel Consumption
Low Oil Shut Down System: Low Oil Alert System to Protect Engine
Ignition Mode: Electric Ignition
Number of Strokes: Four-Stroke
Transport Package: Box
Origin: Chongqing, China

Product Description

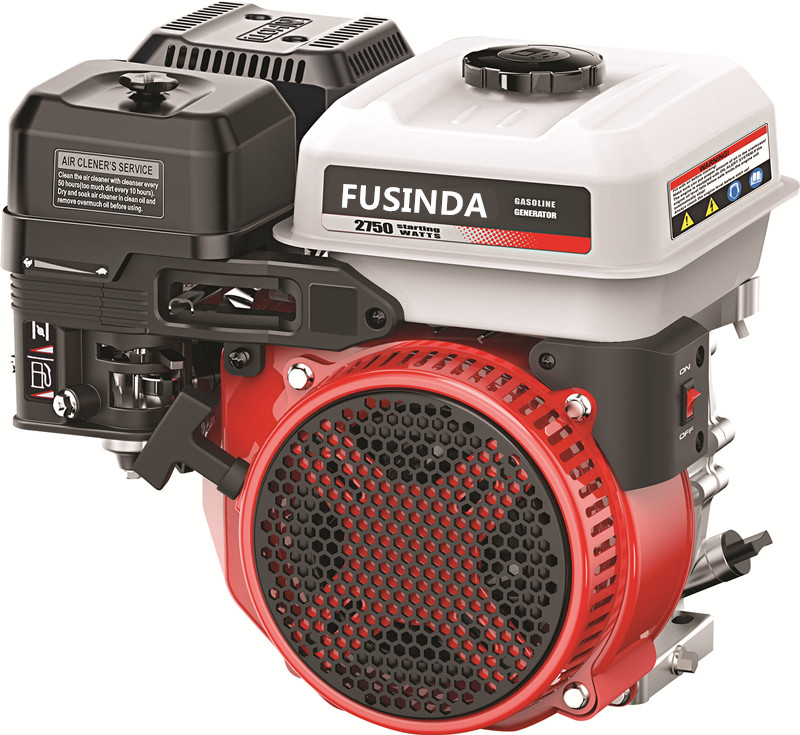

FUSINDA 7HP / 208cc Air-Cooled Honda Style Small Gasoline Engine
7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine

Gasoline Engine specification
Model No.	FD168F	FD170F	FD173F	FD177F	FD188F	FD190F	FD192F
Bore×Stroke	68×54mm	70×54mm	73×58mm	77×58mm	88×64mm	90×66mm	92x66mm
Starting system	Recoil/E-start	Recoil/E-start	Recoil/E-start	Recoil/E-start	Recoil/E-start	Recoil/E-start	E-start
Displacement	196cc	208cc	242cc	270cc	389cc	420cc	439cc
Max Output/3600	6.HP/3600	7.5HP/3600	8HP/3600	9HP/3600	13HP/3600	16/3600	17.5HP/3600
Max Torque/2500	12.5N.m/2500	13.5N.m/2500	14.5N.m/2500	16.5N.m/2500	23N.m/2500	26/2500	28N.m/2500
Ignition type	T.C.I	T.C.I	T.C.I	T.C.I	T.C.I	T.C.I	T.C.I
Fuel Consumption	≤395g/KW/h	≤395g/KW/h	≤374g/KW/h	≤374g/KW.h	≤374g/KW/h	≤374g/kw.h	≤374g/kw.h
Fuel Tank Capacity	3.6L	3.6L	6L	6L	6.5L	6.5L	6.5L
Oil capacity	0.6L	0.6L	1.1L	1.1L	1.1L	1.1L	1.2L
Dimensions(mm	400×370×380	400×370×380	490×420×500	490×420×500	490×420×500	490420500	490×420×510
N.W/G.W(kg)	15/17	15/17	25/28	25/28	31/34	31/34
