Products > Gasoline Engine > > 7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine
7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine 7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine 7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine 7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine

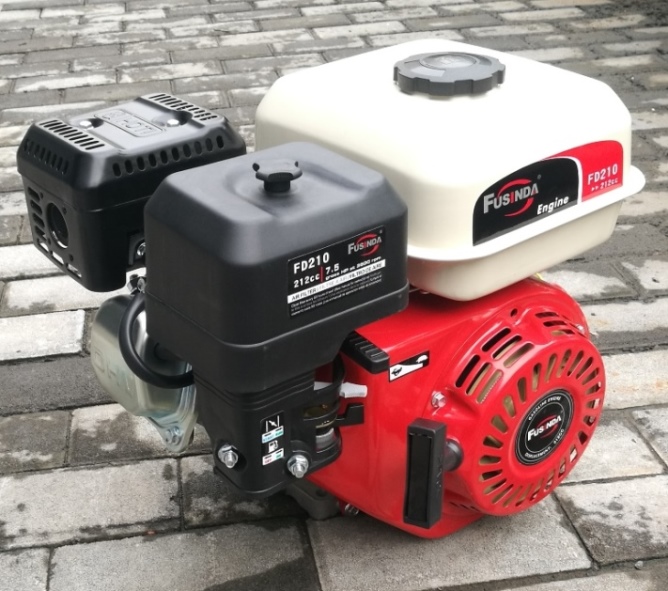

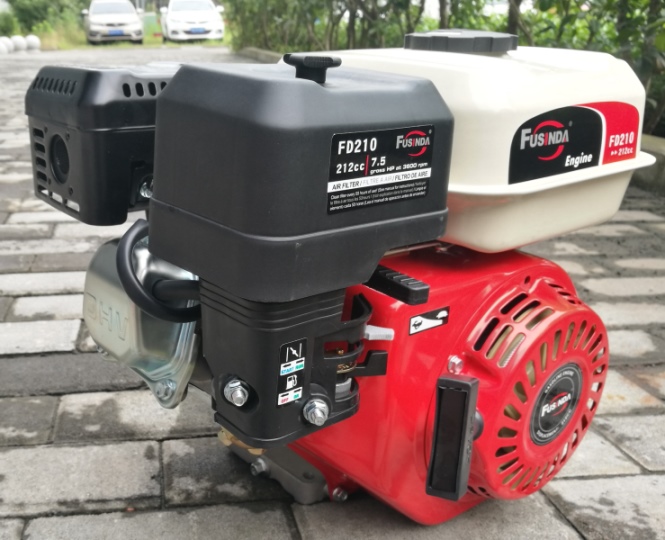

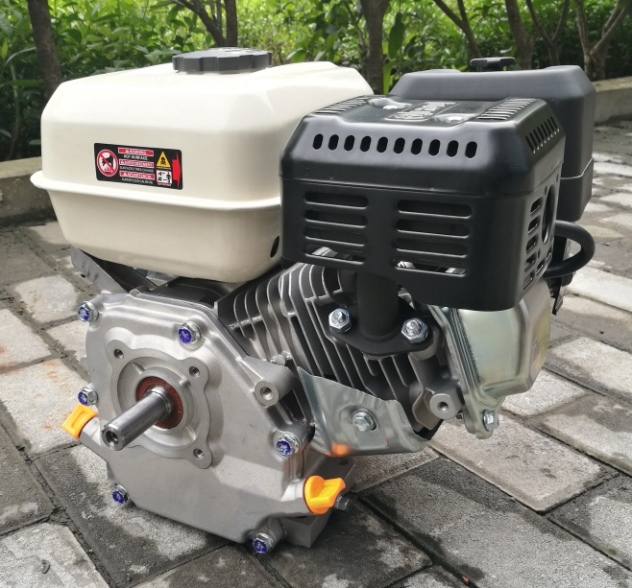

Product name : 7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine
Product No. : FD210
Model Number : FD210
Engine Type : Air-Cooled, 4-Stroke, Ohv, Single Cylinder, Gasoline Engine
Starting System : Manual Start
Trade Mark : Fusinda
Loading Port : Chongqing, China
Origin : Chongqing, China
H.S Code : 84079090
Package : Carton
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
7HP / 208cc Air-Cooled Honda Engine, Small Gasoline Petrol Engine

Basic Info
  • Model NO.: FD170F
  • Discharge Standard: Euro II
  • Cylinder: Single Cylinder
  • Cold Style: Air-cooled
  • Power: Electronic
  • The Valve Solved Carbon Deposition: Effectively Prolong The Lifespan of Engine
  • Easy Start, Easy Maintenance: Effectively Reduce The Heating and Noise
  • Cast Iron Sleeve: Improved The Performance of Lubrication
  • Intake Pressure Impulse: Naturally Aspirated
  • Cooling Cylinder: Air-Cooled
  • Trademark: Fusinda
  • Specification: CE, RoHs, SASO, SONCAP, EPA, CARB
  • HS Code: 84079090
  • Certification: ISO9001, CE, RoHS, EPA
  • Body Material: Aluminium
  • Fuel: Gasoline Engine
  • Stroke: 4 Stroke
  • Start: Electric Start
  • Integrated Type of Wind Scooper: Compact New Structure, Light Weight
  • Completely New Design of Crankcase: Lower Spray Volume of Oil, Less Fuel Consumption
  • Low Oil Shut Down System: Low Oil Alert System to Protect Engine
  • Ignition Mode: Electric Ignition
  • Number of Strokes: Four-Stroke
  • Transport Package: Box
  • Origin: Chongqing, China
Product Description

FUSINDA 7HP / 208cc Air-Cooled Honda Style Small Gasoline Engine
7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine
7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine
7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine
7HP / 208cc Air-Cooled Engine, Small Gasoline Petrol Engine

Gasoline Engine specification
Model No. FD168F FD170F FD173F FD177F FD188F FD190F FD192F
Bore×Stroke 68×54mm 70×54mm 73×58mm 77×58mm 88×64mm 90×66mm 92x66mm
Starting system Recoil/E-start Recoil/E-start Recoil/E-start Recoil/E-start Recoil/E-start Recoil/E-start E-start
Displacement 196cc 208cc 242cc 270cc 389cc 420cc 439cc
Max Output/3600 6.HP/3600 7.5HP/3600 8HP/3600 9HP/3600 13HP/3600 16/3600 17.5HP/3600
Max Torque/2500 12.5N.m/2500 13.5N.m/2500 14.5N.m/2500 16.5N.m/2500 23N.m/2500 26/2500 28N.m/2500
Ignition type T.C.I T.C.I T.C.I T.C.I T.C.I T.C.I T.C.I
Fuel Consumption ≤395g/KW/h ≤395g/KW/h ≤374g/KW/h ≤374g/KW.h ≤374g/KW/h ≤374g/kw.h ≤374g/kw.h
Fuel Tank Capacity 3.6L 3.6L 6L 6L 6.5L 6.5L 6.5L
Oil capacity 0.6L 0.6L 1.1L 1.1L 1.1L 1.1L 1.2L
Dimensions(mm 400×370×380 400×370×380 490×420×500 490×420×500 490×420×500 490*420*500 490×420×510
N.W/G.W(kg) 15/17 15/17 25/28 25/28 31/34 31/34
