Products > Power Tiller > Diesel Power Tiller > 10HP Diesel Engine Powered Rotary Power Tiller Cultivator FD1350

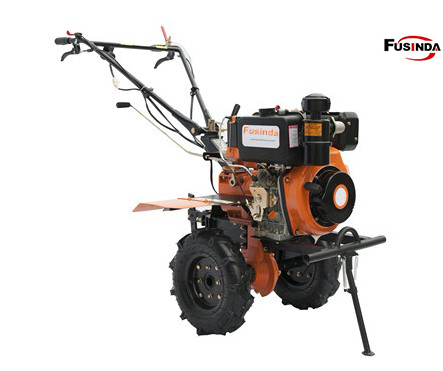

Product name : 10HP Diesel Engine Powered Rotary Power Tiller Cultivator FD1350

Product No. : FD1350

Model Number : FD1350DE

Engine Type : Air-Cooled, 4-Stroke, Ohv, Single Cylinder, Diesel Engine

Starting System : Electric Start

Trade Mark : Fusinda

Loading Port : Chongqing, China

Origin : Chongqing, China

H.S Code : 84322900

Package : Carton

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

10HP Diesel Engine Powered Rotary Power Tiller Cultivator FD1350

Basic Info

Model NO.: FD1350
Application Field: Agriculture, Livestock, Aquaculture
Power Source: Diesel
Traction Type: Hanging
Arbor Configuration: Horizontal Axis
Color: Red
Diesel Engine Tiller Lighter in Weight: Diesel Engine Tiller Smaller in Size
Higher Output: Lower Vibration
Easy to Start: Easy to Maintence
Transport Package: Wooden Box
Origin: Chongqing

Type: Rotary Tiller
Farming Policy: Dry Cultivating Machinery
Operation: Soil Preparation Machinery, Continuous Running Operation
Drive Type: Gear Drive
Certification: ECE, EU, CE
Diesel Engine Tiller Compact in Structur: Diesel Engine Tiller Nice in Appearance
Lower Fuel Consumption: Lower Noise
Smooth Running: Reliable Performance
Trademark: Fusinda
Specification: SGS, CE, EU, ECE
HS Code: 84322900

Product Description

10HP 6.6kw Diesel Tiller, Power Tiller, Farm Rotary Tiller Diesel Engine Tiller
Product Description
MAIN CHARACTERISTICS
1. Compact structure, nice appearance
2. Small size, light weight
3. Powered by air-cooled diesel engine. Low fuel consumption for higher power
4. Easy to operate, easy to maintain

9HP 6.6kw Diesel Tiller, Power Tiller, Farm Rotary Tiller Diesel Engine Tiller

TILLING MACHINE		FD1050	FD1350DE
Body Size (mm)		1800X1350X850	1800X1350X850
Tilling Depth (mm)		100-200
Tilling Width (mm)		9001100	1000-1350
Gear Shifting		Reverse -1,0,Forward 1,2
Fuel Tank Capacity (L)		5.5
Transmission Oil Capacity (L)		1.1
Driving Mode		Shaft Gear
ENGINE
Engine Model	FD178FE (Diesel, Forced air-cooling)			FD186FE (Diesel, Forced air-cooling)
Engine Type	Single-cylinder, Vertical 4-stroke, forced air-cooling, Direction injection
Engine Power	7HP			10HP
Starting Mode	Electric Starter/Battery			Electric Starter/Battery
PACKAGING AND OTHERS
L * W *H (mm)	970580780
N.W./G.W. (kg)	122/127
Container Load	20' GP/72units 40' HQ/144pcs
Certificate	CE
Standard Features	With Free rotor tiller_I (4X4 blade:32pcs)and Wheels(size 400-10) and Mud fender. With electric starter motor and Battery

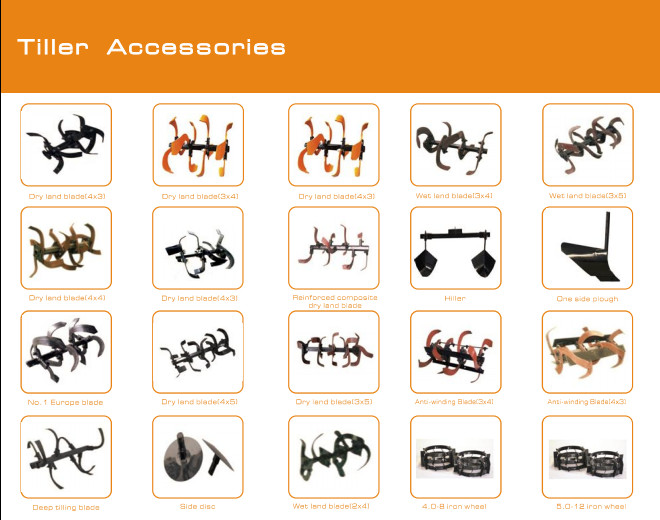

Option	40pcs of blade, Wheel (size 500-12, 600-12)
